I’m working on a project where I need several sensors that communicate back to a central processor. Since I’ll have several of these sensors I need them to be cheap and the ATtiny85 jumped to mind. The only problem is that I’ve never used i2c with the ATtiny series before. I read dozens of “tutorials” about it from around the web and couldn’t find a nice simple example. This is my solution.

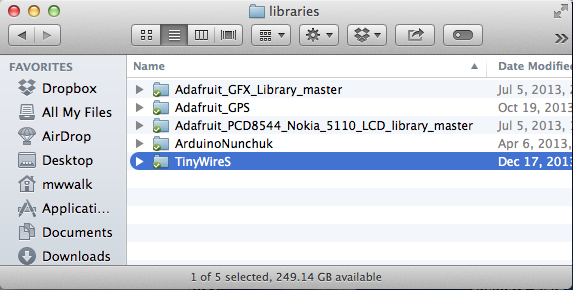

The first thing to do is download the ATtiny85 i2c slave library. You can find this library here: https://github.com/rambo/TinyWire/tree/master/TinyWireS. Click the download zip button and then unzip the folder into the libraries folder in your Arduino folder. This is by default in Documents/Arduino/libraries. If this folder doesn’t already exist, create it.
Next, connect the circuit. As a refresher, here is the pinout for the ATtiny85.
And here is the SDA and SCL pins for various microcontrollers.
| Controller | SDA | SCL |
| ATtiny85 | 5 | 7 |
| Arduino Uno | A4 | A5 |
| Arduino Mega | 20 | 21 |
| Arduino Leonardo | 2 | 3 |
| Arduino Due | 20 | 21 |
For my example, I’m using an ATtiny85 and an Arduino Mega2560. Connect the SDA pin on one to the SDA pin on the other and the SCL pin on one to the SCL pin on the other. This isn’t like RX/TX pins where you need to cross them.
Now, just program the ATtiny 85 and the Arduino Mega with the following code and voila. The Mega requests data from the ATtiny, which returns a number and then increments it.
// Code for the ATtiny85
#define I2C_SLAVE_ADDRESS 0x4 // Address of the slave
#include <TinyWireS.h>
int i=0;
void setup()
{
TinyWireS.begin(I2C_SLAVE_ADDRESS); // join i2c network
//TinyWireS.onReceive(receiveEvent); // not using this
TinyWireS.onRequest(requestEvent);
// Turn on LED when program starts
pinMode(1, OUTPUT);
digitalWrite(1, HIGH);
}
void loop()
{
// This needs to be here
TinyWireS_stop_check();
}
// Gets called when the ATtiny receives an i2c request
void requestEvent()
{
TinyWireS.send(i);
i++;
}
//Code for the Arduino Mega<
#include <Wire.h>
void setup()
{
Wire.begin(); // join i2c bus (address optional for master)
Serial.begin(9600); // start serial for output
}
void loop()
{
Wire.requestFrom(4, 1); // request 1 byte from slave device address 4
while(Wire.available()) // slave may send less than requested
{
int i = Wire.read(); // receive a byte as character
Serial.println(i); // print the character
}
delay(500);
}
